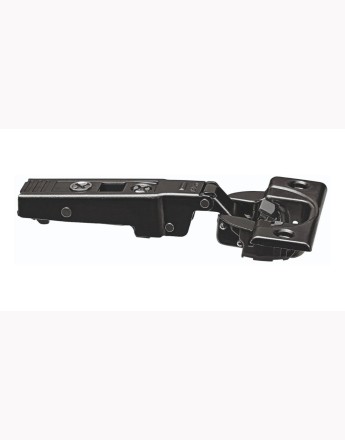

Blum 95° full overlay CLIP Top BLUMOTION thick door soft-close hinge screw-on (71B9550) ONYX
£4.57(inc. VAT)
Model: 71B9550 onyx
Status: In Stock
Qty
Product Description
This hinge is designed for use with thicker doors ranging
from 25 to 32mm.
CLIP top BLUMOTION is a combination of the latest technology, design, and, above all, excellent quality of movement on even the smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION function can be deactivated.
Please have a look at the Product Specification for technical
details.

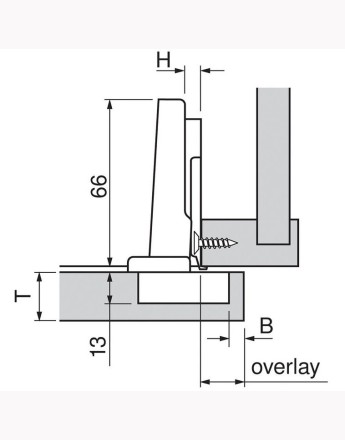

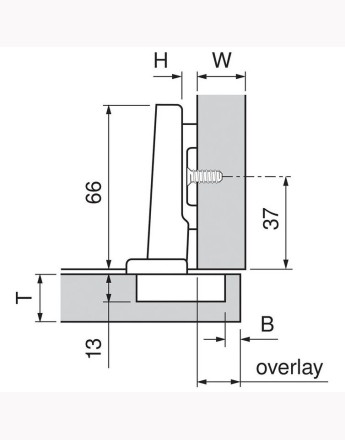

Product Specification
Opening angle: 95°
Full overlay
Cranking: corner merge application
CLIP Top BLUMOTION

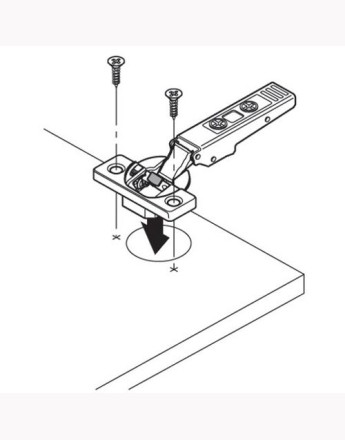

Hinge cup assembly: screw-on
Hinge cup material: steel hinge cup
Closing mechanism: with spring

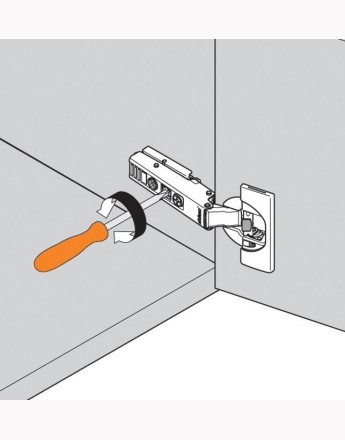

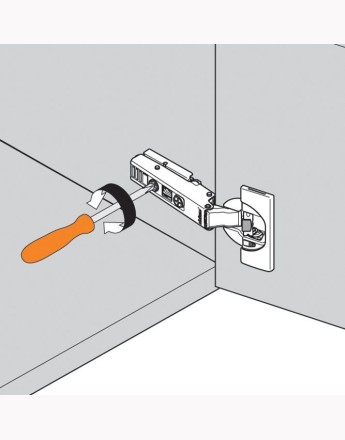

Side adjustment: +/- 2 mm

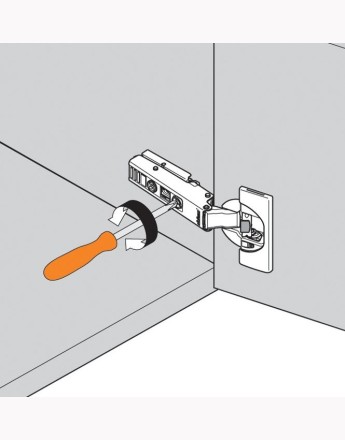

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Cabinet type: Frameless
Closing type: Soft-Closing
Hinge cup mounting: Screw-On
Boring pattern spread: 45mm
Application: standard
Arm style: straight
Cup diameter: 35mm
Cup depth: 13mm
Max overlay: 18mm
Max door thickness: 30mm
Product finish: nickel
Plate sold separately
