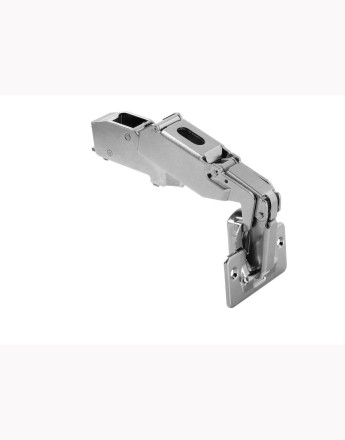

Blum 170° cliptop full overlay wide angle hinge, screw-on (71T6550)
£4.45(inc. VAT)
Model: 71T6550
Status: In Stock
Qty
Product Description
The advantage of this hinge is that the wide opening angle
provides easy access to the interior of the wardrobe. Moreover, it is easy to
set up. Additionally, it can be installed and disassembled in a simple and
tool-free way.
CLIP top BLUMOTION is a combination of the latest technology, design, and, above all, excellent quality of movement on even the smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION function can be deactivated.
Please have a look at the Product Specification for technical
details.
Product Specification

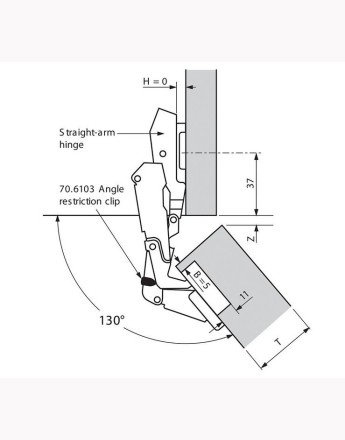

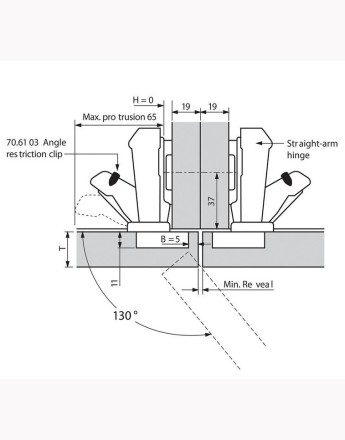

Opening angle: 170°
Full overlay
Cranking: corner merge application
CLIP Top BLUMOTION
Hinge cup assembly: screw-on
Hinge cup material: steel hinge cup
Closing mechanism: with spring

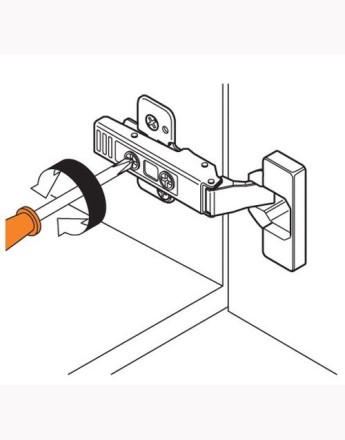

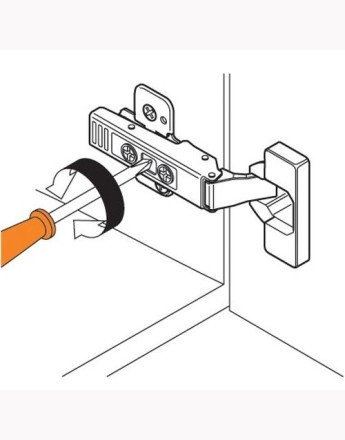

Side adjustment: +/- 2 mm

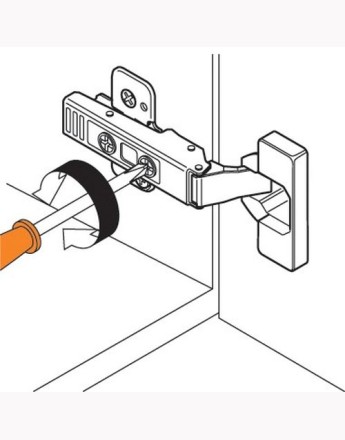

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Cabinet type: frameless
Closing type: soft-closing
Hinge cup mounting: screw-on
Boring pattern spread: 45mm
Application: Standard
Arm style: straight
Cup diameter: 35mm
Cup depth: 11mm

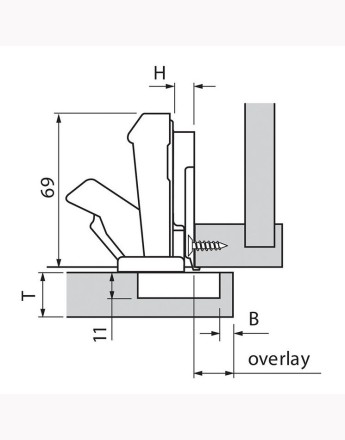

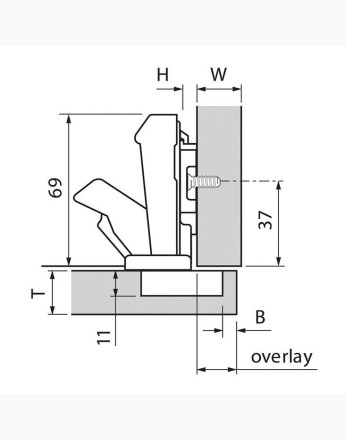

Max overlay: 19mm
Max door thickness: 24mm
Product finish: nickel
Plate sold separately
