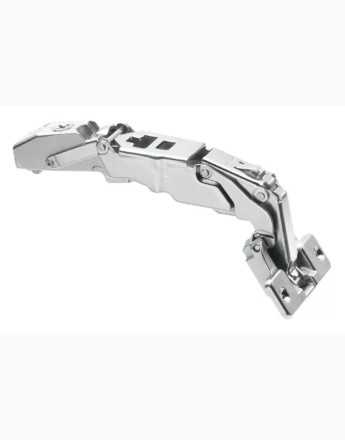

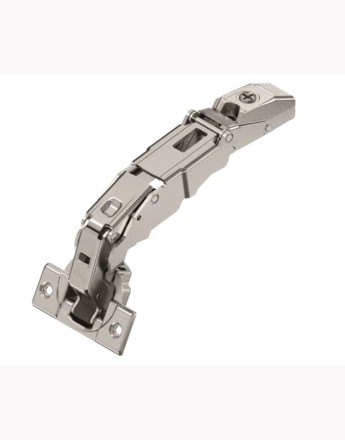

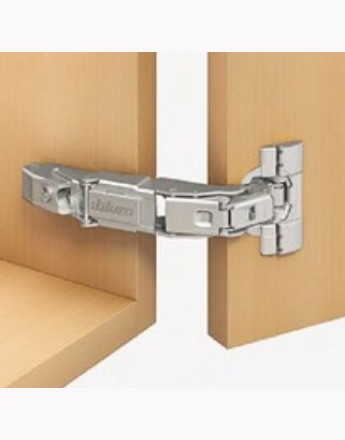

Blum 155° full overlay zero protrusion CLIP Top BLUMOTION wide angle hinge soft-close screw-on (71B7550)
£6.72(inc. VAT)
Model: 71B7550
Status: In Stock
Qty
Product Description

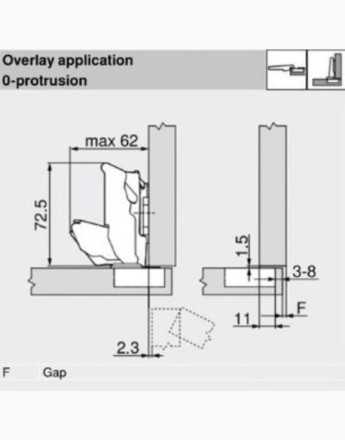

This hinge has zero protrusion for overlay application. Is
ideal for cabinets with inner pull-outs or pull-out shelves.
CLIP top BLUMOTION is a combination of the latest technology, design, and, above all, excellent quality of movement on even the smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION function can be deactivated.
Please have a look at the Product Specification for technical
details.
Product Specification
Opening angle: 155°
Overlay inset
Cranking: inset door application
CLIP Top BLUMOTION
Full overlay
Side adjustment: +/- 2 mm
Cabinet type: frameless
Closing type: soft-closing
Hinge cup mounting: screw-on
Boring pattern spread: 45mm
Application: wide angle
Arm style: straight
Cup diameter: 35mm
Cup depth: 11.7mm
Max overlay: 19mm
Max door thickness: 24mm
Product finish: nickel
Plate sold separately
