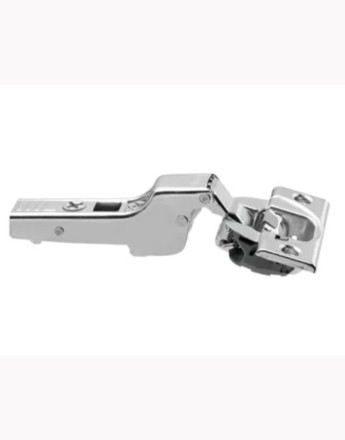

Blum 110° half overlay CLIP Top BLUMOTION hinge soft-close screw-on (71B3650)
£3.71(inc. VAT)
Model: 71B3650
Status: In Stock
Qty
Product Description
The 110° hinge enables the implementation of thicker doors
up to 24 mm - depending on the application. A hinge can be installed on either a
face frame or a frameless structure. The new pivot point prevents a collision
with the front edge of the cabinet when the door is open.
CLIP top BLUMOTION is a combination of the latest technology, design, and, above all, excellent quality of movement on even the smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION function can be deactivated.
Please have a look at the Product Specification for technical
details.
Product Specification
Opening angle: 110°

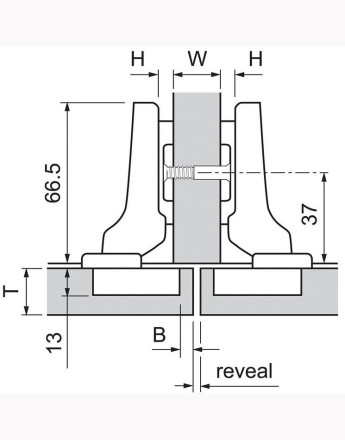

Half overlay
Cranking: dual application
CLIP Top BLUMOTION

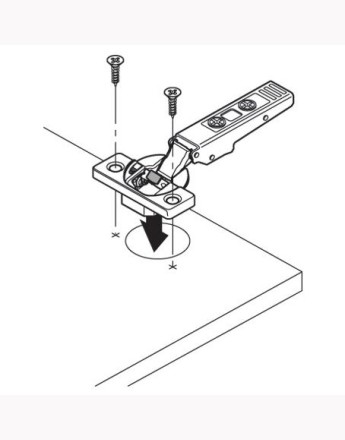

Hinge cup assembly: screw-on
Hinge cup material: steel hinge cup
Closing mechanism: with spring

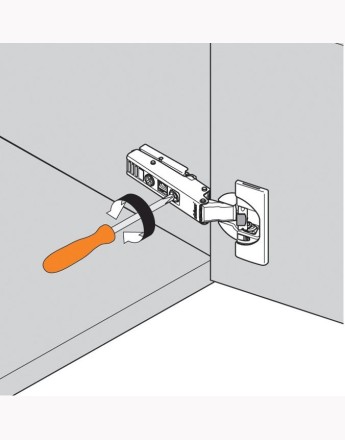

Side adjustment: +/- 2 mm

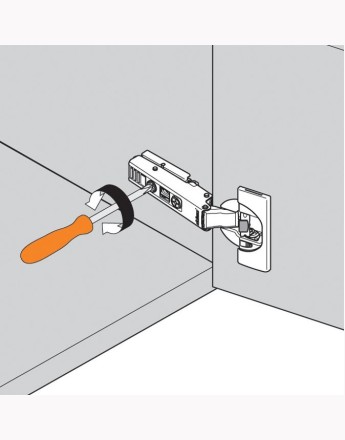

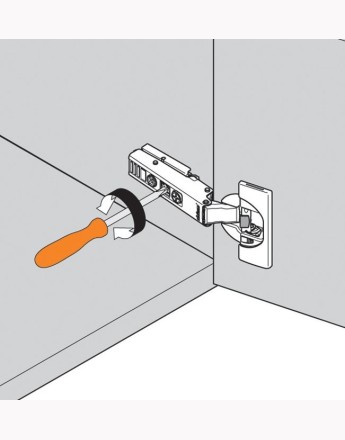

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Cabinet type: frameless
Closing type: soft-closing
Hinge cup mounting: screw-on
Boring pattern spread: 45mm
Application: standard
Arm style: half-crank
Cup diameter: 35mm
Cup depth: 13mm

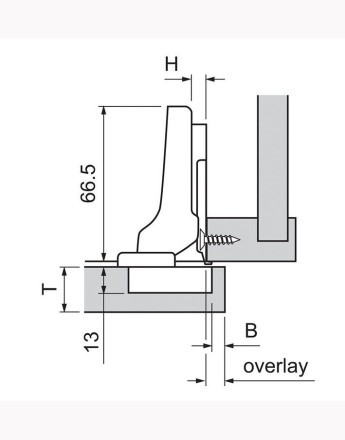

Max overlay: 8.5mm
Max door thickness: 26mm
Product finish: nickel
Plate sold separately
