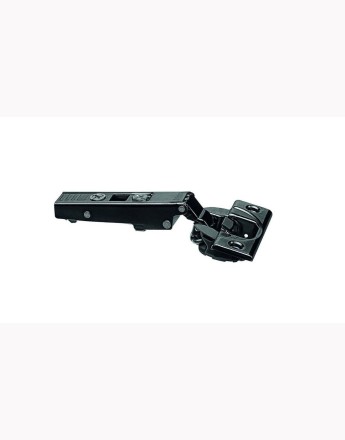

Blum 110° full overlay CLIP Top BLUMOTION hinge soft-close screw-on (71B3550) ONYX
£3.89(inc. VAT)
Model: 71B3550 onyx
Status: In Stock
Qty
Product Description
The 110 ° hinge enables the implementation of thicker doors
up to 24 mm - depending on the application. A hinge can be installed on either a
face frame or a frameless structure. The new pivot point prevents a collision
with the front edge of the cabinet when the door is open.
CLIP top BLUMOTION is a combination of the latest
technology, design, and, above all, excellent quality of movement on even the

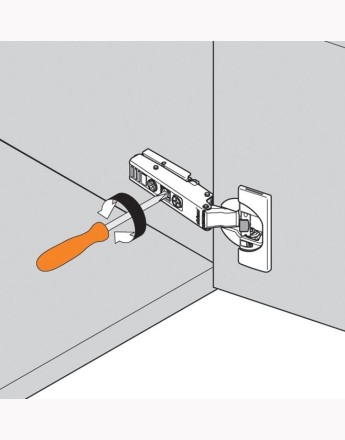

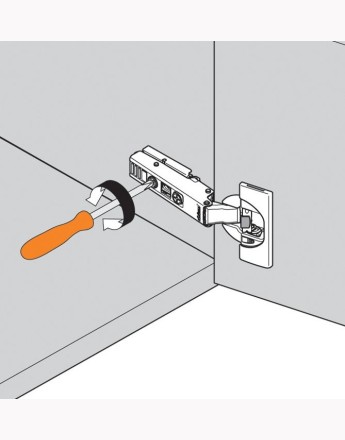

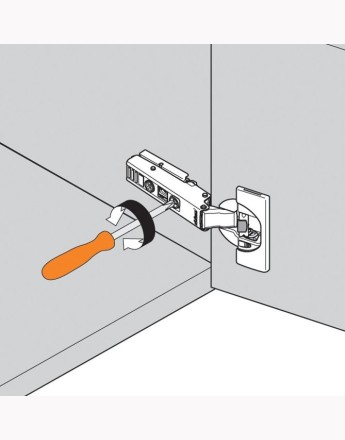

smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION
function can be deactivated.
Please have a look at the Product Specification for technical
details.

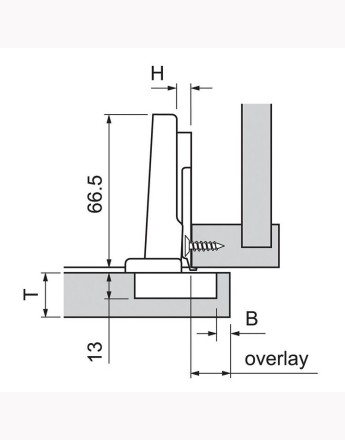

Product Specification
Opening angle: 110°
Full overlay
Closing type: soft-closing

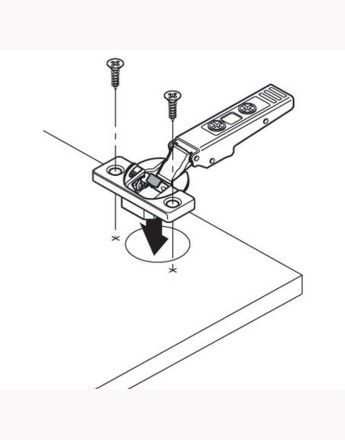

Hinge cup mounting: screw-on
Boring pattern spread: 45mm
Clip Top Blumotion
Application: standard
Arm style: straight
Cup diameter: 35mm
Cup depth: 13mm
Max overlay: 18mm
Max door thickness: 26mm
Product finish: nickel, onyx black
Plate sold separately
