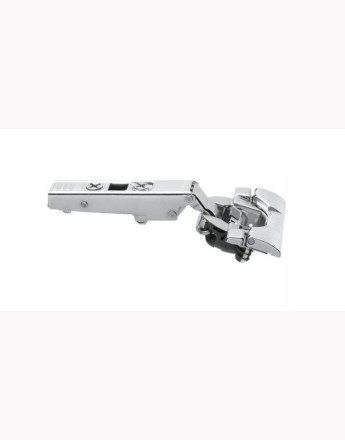

Blum 110° full overlay CLIP Top BLUMOTION hinge soft-close inserta (71B3590)
£4.28(inc. VAT)
Model: 71B3590
Status: In Stock
Qty
Product Description
The 110 ° hinge enables the implementation of thicker doors
up to 24 mm - depending on the application. A hinge can be installed on either a
face frame or a frameless structure. The new pivot point prevents a collision
with the front edge of the cabinet when the door is open.
CLIP top BLUMOTION is a combination of the latest
technology, design, and, above all, excellent quality of movement on even the
smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION
function can be deactivated.
Please have a look at the Product Specification for technical
details.
Product Specification
Opening angle: 110°
Full overlay
Cranking: corner merge application
CLIP Top BLUMOTION
Hinge cup assembly: INSERTA
Hinge cup material: steel hinge cup
Closing mechanism: with spring
Side adjustment: +/- 2 mm

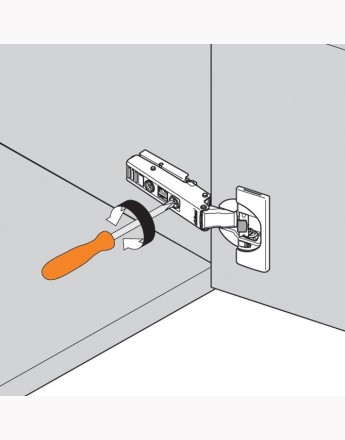

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Cabinet type: Frameless
Closing type: Soft-Closing
Hinge cup mounting: Tool-Free
Boring pattern spread: 45mm
Application: Standard
Arm style: Straight

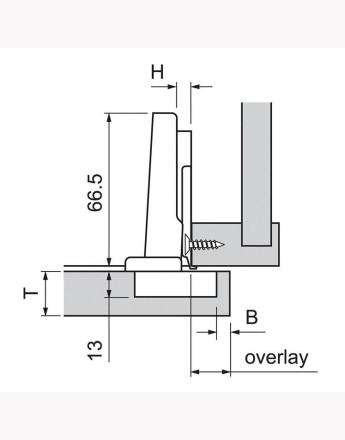

Cup diameter: 35mm
Cup depth: 13mm
Max overlay: 18mm
Max door thickness: 26mm
Product finish: Nickel
Plate sold separately
