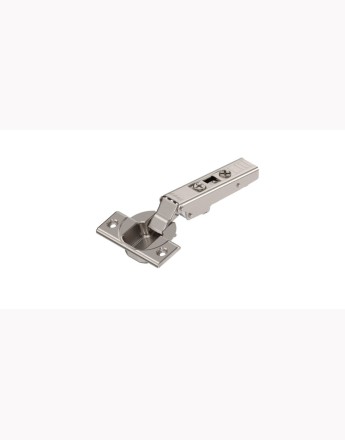

Blum 110° full overlay CLIP Top BLUMOTION hinge (71T3550)
£1.68(inc. VAT)
Model: 71T3550
Status: In Stock
Qty
Product Description
The 110 ° hinge is designed for cabinet doors with an
overlay.
CLIP top BLUMOTION is a combination of the latest
technology, design, and, above all, excellent quality of movement on even the
smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION
function can be deactivated.
Please have a look at the Product Specification for technical
details.

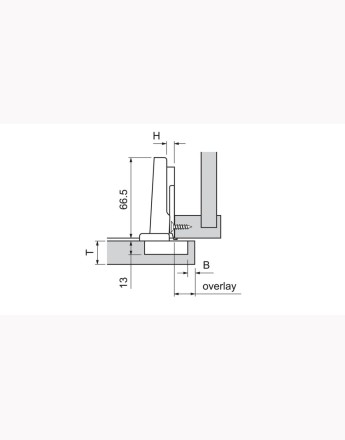

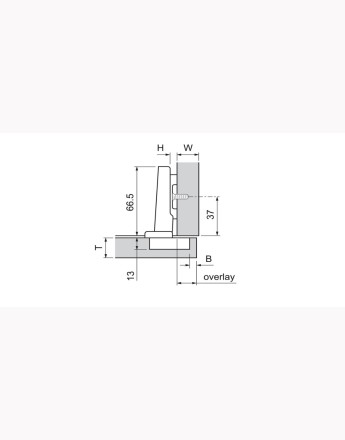

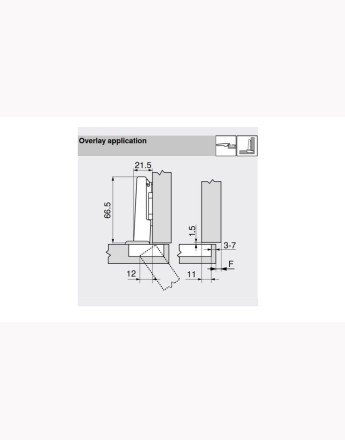

Product Specification
Opening angle: 110°
Full overlay

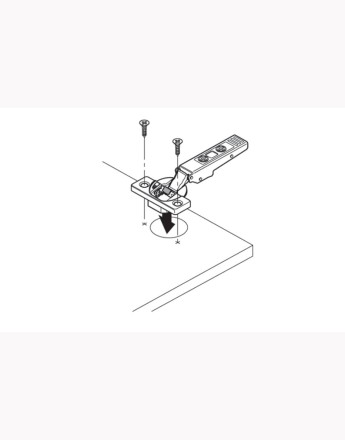

Hinge cup mounting: screw-on

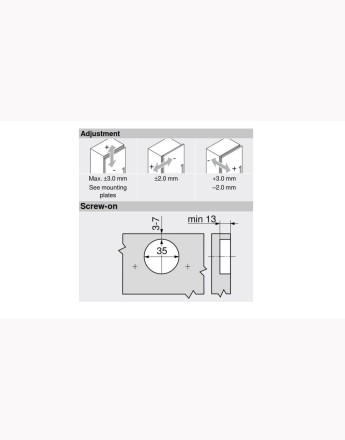

Cup diameter: 35mm
Max door thickness: 26mm

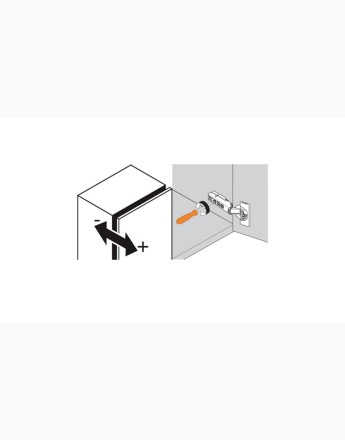

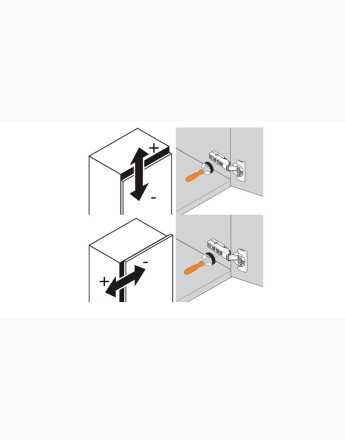

Side adjustment: +/- 2mm
Depth adjustment: plus 3mm/minus 0,5mm, with screw
Closing mechanism: with spring
Cranking: horizontal
Product finish: nickel
Plate sold separately
